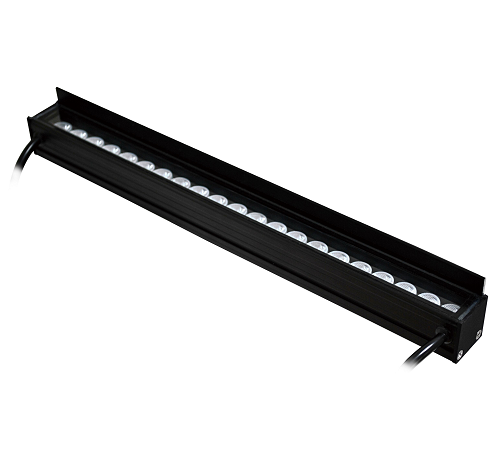

AL-TK Series

Product Feature
  • Nichia LED or LED made in Taiwan, CRI > 80
  • Extrudedand Anodized Aluminum
  • Tempered glass with cold-resistant & heat-resistant
  • Each Pixel 15cm/30cm and Address available(For Control mode)
  • Reverse Voltage Input & Over Current Protection
  • Build In TTL(SPI) decoder or DMX512 decoder available(For Control mode)
  • Operating temperature: 0°~50°
  • Support Max. Power: 24W
Product Specification

No Decoder

Part Code Size(mm) LED Qty. Power Lumen Voltage LED Brand Lumen
per Watt
Beam
Angle
Protection
Grade
Color
AL-TK30/S12 312X27X40 12 3W 150 DC24V LED Nichia or
LED made in Taiwan
30-80
lm/W
120° IP4X
or
IP66
2100K
2400K
2700K
3000K
4000K
5000K
6000K
Red
Green
Blue
RGB3IN1
AL-TK60/S24 612X27X40 24 6W 300
AL-TK90/S36 912X27X40 36 9W 450
AL-TK120/S48 1212X27X40 48 12W 600
AL-TK30/S18 312X27X40 18 4.5W 225
AL-TK60/S36 612X27X40 36 9W 450
AL-TK90/S54 912X27X40 54 13.5W 675
AL-TK120/S72 1212X27X40 72 18W 900
AL-TK30/S21 312X27X40 21 6W 300 DC24V LED Nichia or
LED made in Taiwan
30-80
lm/W
Nichia
5°,15°
20°,25°
30°,45°
60°
IP4X
or
IP66
2100K
2400K
2700K
3000K
4000K
5000K
6000K
AL-TK60/S42 612X27X40 48 12W 600
AL-TK90/S63 912X27X40 63 18W 900
AL-TK120/S84 1212X27X40 84 24W 1200

Optical data mainly in face.



Inside Decoder

Part Code Size(mm) LED Qty. Power Address Voltage LED Brand Signal Beam
Angle
Protection
Grade
Color
AL-TK30-1/S12 312X27X40 12 3W 1 DC24V LED Nichia or
LED made in Taiwan
DMX512 120° IP4X
or
IP66
2100K
2400K
2700K
3000K
4000K
5000K
6000K
Red
Green
Blue
RGB3IN1
RGBW
AL-TK60-1/S24 612X27X40 24 6W 2
AL-TK90-1/S36 912X27X40 36 9W 3
AL-TK120-1/S48 1212X27X40 48 12W 4
AL-TK30-2/S12 312X27X40 12 3W 2
AL-TK60-2/S24 612X27X40 24 6W 4
AL-TK90-2/S36 912X27X40 36 9W 6
AL-TK120-2/S48 1212X27X40 48 12W 8
