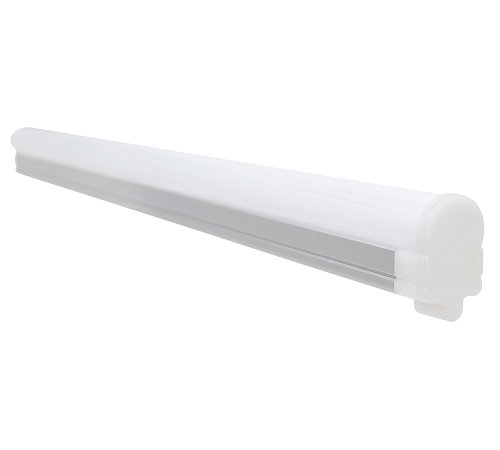

PL-O LED Light Bar Series

Product Feature
  • Nichia SMD LED or LED made in Taiwan, CRI > 80
  • Extruded and anodized aluminum
  • UV resisted & optics diffused PC cover for lightbar
  • Reverse voltage input & over current protection
  • External auto addressing DMX512 decoder available (for control mode)
  • Light continuous effect provided
  • Operating temperature: 0°~50°C
  • Support Max. power: 24W
Product Specification

No Decoder

Part Code Size(mm) LED Qty. Power Lumen LED Brand Voltage Lumen per Watt Lens Degree Protection Grade Color
DC24V AC110~
220V
PL-O30/S18 310X34X55 18 4.5W 90 Nichia or LED
made in Taiwan
  V 20-40
lm/w
120° IP66 2000K
2400K
2700K
3000K
4000K
5000K
6000K
Red
Green
Blue
Amber
RGB3in1
RGBW
PL-O60/S36 610X34X55 36 9W 180   V
PL-O90/S54 910X34X55 54 36W 270   V
PL-O120/S72 1210X34X55 72 48W 360   V

Optical data mainly in face.


Inside Decoder

Part Code Size(mm) LED Qty. Power Address LED Brand Voltage Signal Lens Degree Protection Grade Color
PL-O30-1/S18 310X34X55 18 4.5W 1 Nichia or LED
made in Taiwan
DC24V DMX512 120° IP66

2000K
2400K
2700K
3000K
4000K
5000K
6000K
Red
Green
Blue
Amber
RGB3in1
PL-O60-1/S36 610X34X55 36 9W 1
PL-O90-1/S54 910X34X55 54 13.5W 1
PL-O120-1/S72 1210X34X55 72 18W 1
PL-O30-2/S18 310X34X55 18 4.5W 1
PL-O60-2/S36 610X34X55 36 9W 2
PL-O90-2/S54 910X34X55 54 13.5W 3
PL-O120-2/S72 1210X34X55 72 18W 4
PL-O20-1/S24 210X34X55 24 3W 1 LAMP LED
Nichia LAMP LED
30°
60°
100°
90X45°
110X60°
RGB
PL-O40-1/S48 410X34X55 48 6W 2
PL-O60-1/S72 610X34X55 72 9W 3
PL-O80-1/S96 810X34X55 96 12W 4
PL-O100-1/S120 1010X34X55 120 15W 5
PL-O120-1/S144 1210X34X55 144 18W 6
PL-O30-5/S24 310X34X55 24 6W 4 Nichia or LED
made in Taiwan
120° 2700K
3000K
6000K
RGB 3in1
PL-O60-5/S48 610X34X55 48 12W 8
PL-O90-5/S72 910X34X55 72 18W 12
PL-O120-5/S96 1210X34X55 96 24W 16
PL-O30-6/S24 310X34X55 24 6W 2 RGBW
PL-O60-6/S48 610X34X55 48 12W 4
PL-O90-6/S72 910X34X55 72 18W 6
PL-O120-6/S96 1210X34X55 96 24W 8
